种类 Item	测试方法 Test method	单位 Unit	UHMWPE 1000-V	UHMWPE 1000-DS
密度Density	ISO1183-1	g/cm3	0.93-0.95	0.95-0.96
屈服强度Yield Strength	ASTM D-638	N/mm2	15-22	15-22
断裂伸长率Breaking Elongation	ISO527	%	>200%	>100%
冲击强度Impact strength	ISO179	Kj/m2	130-170	90-130
磨损Abrasion	ISO15527	Steel=100	80-110	110-130
硬度Shore Hardness	ISO 868	Shore D	63-64	63-67
摩擦系数Friction Coefficient(Static state)	ASTM D-1894	Unitless	<0.2	<0.2
工作温度Operating temperature	-	℃	-80 to +80	-80 to +80

护舷板种类：

护舷拐板，护舷角板，护舷平面板

护舷板护舷贴面板

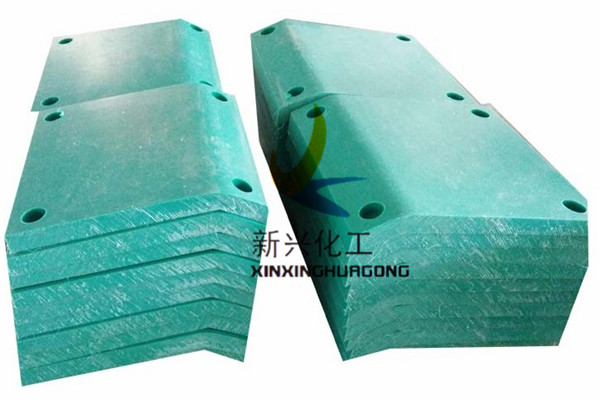

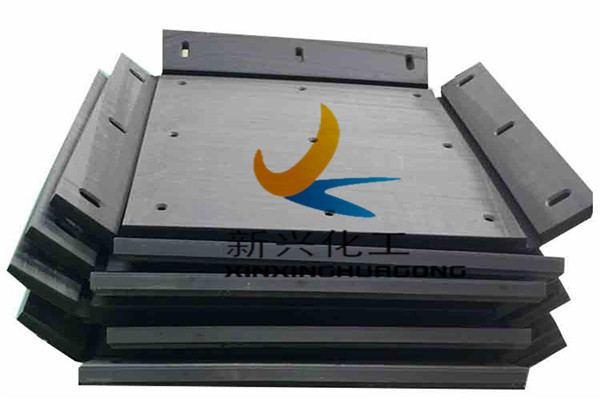

UHMWPE fender is made of 100% UHMWPE material which will not warp, crack, splinter or corrode.

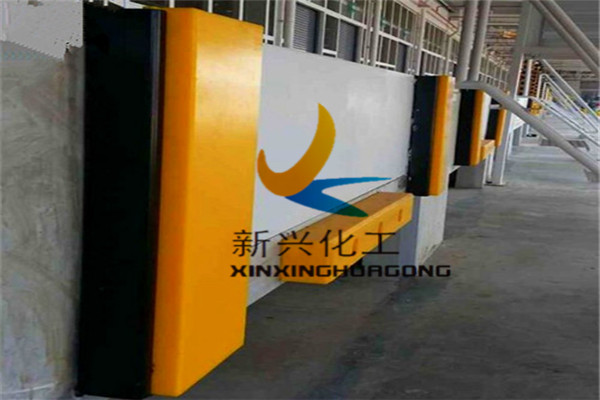

It has become a popular product which is widely used in dock as it is UV resistance and no water absorption.UHMWPE fender still has the performance of prolongation and high tensile strength and could immersed in seawater perennially. The most important is that Ultra-high molecular weight polyethylene (UHMWPE) dock fender could avoid the impact damage between ships and dock .Because of the high impact resistance performance, UHMWPE dock fender instead of the traditional steel ones is widely used in ports and docks at home and abroad.
船用护舷板

关键词：护舷板,船用护舷板,护舷贴面板
